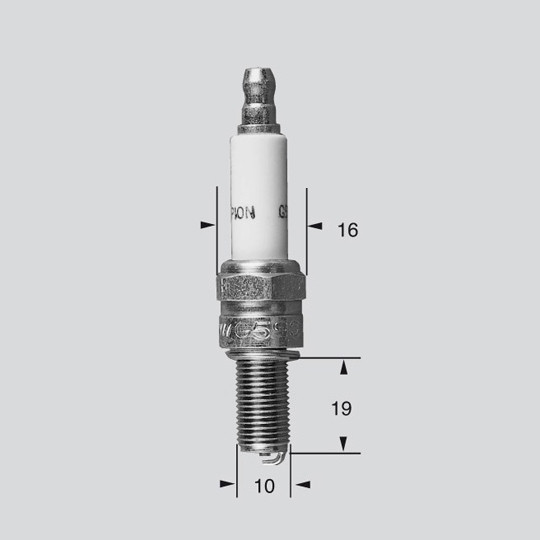

OE122/T10

TECH CODE: RG4PHP


TYPE: DOUBLE PLATINUM
HEAT RANGE (IMEP) - IMEP ESTABLISHED PER SAE J549 = 275
0 15 25 50 75 100 125 150 175 200 225 250 275 300 325 350 375 400

275
CONNECTION TERMINAL
TERMINAL: PHP
GAP: 0.7 mm
RESISTOR TYPE: K / R
BERU
Z210
DENSO
IU27
DENSO
IU27A
DENSO
U24ESRNZU
NGK
CR9EB
NGK
CR9EKB
NGK
PMR7A
NGK
PMR8B
NGK
PMR9B

OE122/T10 APPLICATION

MODEL
CC
KW
FROM > TO
SCARABEO 50 / 50 Street 4T 2V -2T
50
2004 > 2006

MODEL: SCARABEO 50 / 50 Street 4T 2V -2T
FROM > TO: 2004 > 2006
CC: 50

Sportcity One 4T
50
2
2008 >

MODEL: Sportcity One 4T
FROM > TO: 2008 >
CC: 50
KW: 2

SCARABEO 100 (Minarelli engine)
100
2000 >

MODEL: SCARABEO 100 (Minarelli engine)
FROM > TO: 2000 >
CC: 100

SCARABEO 100 (Yamaha engine)
100
2000 >

MODEL: SCARABEO 100 (Yamaha engine)
FROM > TO: 2000 >
CC: 100

Scarabeo 100 RE 4T
100
2000 >

MODEL: Scarabeo 100 RE 4T
FROM > TO: 2000 >
CC: 100

RS4 125
125
11
2011 >

MODEL: RS4 125
FROM > TO: 2011 >
CC: 125
KW: 11

RS4 125 4T (AJP caliper)
125
2011 >

MODEL: RS4 125 4T (AJP caliper)
FROM > TO: 2011 >
CC: 125

SCARABEO 125 Street
125
2009 >

MODEL: SCARABEO 125 Street
FROM > TO: 2009 >
CC: 125

SCARABEO 200 i.e.
200
2009 >

MODEL: SCARABEO 200 i.e.
FROM > TO: 2009 >
CC: 200

Sportcity 250 i.e.
244
17
2006 > 2008

MODEL: Sportcity 250 i.e.
FROM > TO: 2006 > 2008
CC: 244
KW: 17

RSV4 Factory
999
132
2009 >

MODEL: RSV4 Factory
FROM > TO: 2009 >
CC: 999
KW: 132

RSV4 Factory
999
132
2010 >

MODEL: RSV4 Factory
FROM > TO: 2010 >
CC: 999
KW: 132

RSV4 Factory APRC ABS
999
135
2011 >

MODEL: RSV4 Factory APRC ABS
FROM > TO: 2011 >
CC: 999
KW: 135

RSV4 R
999
132
2010 >

MODEL: RSV4 R
FROM > TO: 2010 >
CC: 999
KW: 132

RSV4 Tuono V4 R
999
123
2011 >

MODEL: RSV4 Tuono V4 R
FROM > TO: 2011 >
CC: 999
KW: 123

RSV4 Tuono V4 R APRC
999
123
2011 >

MODEL: RSV4 Tuono V4 R APRC
FROM > TO: 2011 >
CC: 999
KW: 123

Tuono V4 RR
1077
129
2015 >

MODEL: Tuono V4 RR
FROM > TO: 2015 >
CC: 1077
KW: 129

Tuono V4 Factory
1100
125
2015 >

MODEL: Tuono V4 Factory
FROM > TO: 2015 >
CC: 1100
KW: 125

Dorsoduro 1200 ABS/ATC
1197
96
2010 >

MODEL: Dorsoduro 1200 ABS/ATC
FROM > TO: 2010 >
CC: 1197
KW: 96

MODEL
CC
KW
FROM > TO
BN 302
300
28
2014 >

MODEL: BN 302
FROM > TO: 2014 >
CC: 300
KW: 28

TNT R 160
1130
2009 >

MODEL: TNT R 160
FROM > TO: 2009 >
CC: 1130

MODEL
CC
KW
FROM > TO
G 450 X (K16)
450
30
2007 > 2010

MODEL: G 450 X (K16)
FROM > TO: 2007 > 2010
CC: 450
KW: 30

G 450 X (K16)
450
30
2008 >

MODEL: G 450 X (K16)
FROM > TO: 2008 >
CC: 450
KW: 30

MODEL
CC
KW
FROM > TO
1125 CR
1125
109
2009 > 2010

MODEL: 1125 CR
FROM > TO: 2009 > 2010
CC: 1125
KW: 109

1125 R
1125
109
2008 > 2010

MODEL: 1125 R
FROM > TO: 2008 > 2010
CC: 1125
KW: 109

1125 R
1125
109
2009 > 2010

MODEL: 1125 R
FROM > TO: 2009 > 2010
CC: 1125
KW: 109

MODEL
CC
KW
FROM > TO
Atlantis 50
49
3
2007 >

MODEL: Atlantis 50
FROM > TO: 2007 >
CC: 49
KW: 3

GP1 250
250
2007 >

MODEL: GP1 250
FROM > TO: 2007 >
CC: 250

MODEL
CC
KW
FROM > TO
1190RX
1190
2014 >

MODEL: 1190RX
FROM > TO: 2014 >
CC: 1190

1190SX
1190
2014 >

MODEL: 1190SX
FROM > TO: 2014 >
CC: 1190

MODEL
CC
KW
FROM > TO
RCR 50
50
2
2006 >

MODEL: RCR 50
FROM > TO: 2006 >
CC: 50
KW: 2

SMT 50
50
2006 >

MODEL: SMT 50
FROM > TO: 2006 >
CC: 50

DNA 180
180
14
2001 >

MODEL: DNA 180
FROM > TO: 2001 >
CC: 180
KW: 14

Runner 180 VXR (M08)
182
14
2001 >

MODEL: Runner 180 VXR (M08)
FROM > TO: 2001 >
CC: 182
KW: 14

MODEL
CC
KW
FROM > TO
FE 250
250
2013 > 2013

MODEL: FE 250
FROM > TO: 2013 > 2013
CC: 250

MODEL
CC
KW
FROM > TO
TC 250 (4T)
250
2009 >

MODEL: TC 250 (4T)
FROM > TO: 2009 >
CC: 250

TE 250 4T
250
2008 >

MODEL: TE 250 4T
FROM > TO: 2008 >
CC: 250

TE 250 4T
250
2009 >

MODEL: TE 250 4T
FROM > TO: 2009 >
CC: 250

TE 250 4T Meo Replica
250
2011 >

MODEL: TE 250 4T Meo Replica
FROM > TO: 2011 >
CC: 250

TXC 250 R
250
2010 >

MODEL: TXC 250 R
FROM > TO: 2010 >
CC: 250

TE 310 4T
302
28
2009 > 2012

MODEL: TE 310 4T
FROM > TO: 2009 > 2012
CC: 302
KW: 28

SMR 449 R (A6)
449
30
2011 >

MODEL: SMR 449 R (A6)
FROM > TO: 2011 >
CC: 449
KW: 30

TC 449
449
2011 >

MODEL: TC 449
FROM > TO: 2011 >
CC: 449

TE 449
449
2011 >

MODEL: TE 449
FROM > TO: 2011 >
CC: 449

TE 449
449
2013 >

MODEL: TE 449
FROM > TO: 2013 >
CC: 449

TE 511
477
31
2011 >

MODEL: TE 511
FROM > TO: 2011 >
CC: 477
KW: 31

SMR 511
511
2011 >

MODEL: SMR 511
FROM > TO: 2011 >
CC: 511

MODEL
CC
KW
FROM > TO
EXC-F 250
250
2007 > 2009

MODEL: EXC-F 250
FROM > TO: 2007 > 2009
CC: 250

EXC-F 250 SIX DAYS
250
2010 >

MODEL: EXC-F 250 SIX DAYS
FROM > TO: 2010 >
CC: 250

SX-F 250 (4T)
250
2006 > 2012

MODEL: SX-F 250 (4T)
FROM > TO: 2006 > 2012
CC: 250

SX-F 250 (4T)
250
2010 > 2010

MODEL: SX-F 250 (4T)
FROM > TO: 2010 > 2010
CC: 250

SX-F 250 ie (4T)
250
2006 > 2012

MODEL: SX-F 250 ie (4T)
FROM > TO: 2006 > 2012
CC: 250

XCF-W 250 (4T) (USA model)
250
2010 >

MODEL: XCF-W 250 (4T) (USA model)
FROM > TO: 2010 >
CC: 250

450 Rally Factory Replica
450
2014 >

MODEL: 450 Rally Factory Replica
FROM > TO: 2014 >
CC: 450

SMR 450
450
2005 >

MODEL: SMR 450
FROM > TO: 2005 >
CC: 450

SMR 450
450
2005 >

MODEL: SMR 450
FROM > TO: 2005 >
CC: 450

SX-F 450
450
2007 > 2012

MODEL: SX-F 450
FROM > TO: 2007 > 2012
CC: 450

SX-F 450 FACTORY REPLICA
450
2010 >

MODEL: SX-F 450 FACTORY REPLICA
FROM > TO: 2010 >
CC: 450

SX-F 505 (4T)
505
2007 >

MODEL: SX-F 505 (4T)
FROM > TO: 2007 >
CC: 505

MODEL
CC
KW
FROM > TO
CENTRO 50 4T / SL 4T
50
2008 >

MODEL: CENTRO 50 4T / SL 4T
FROM > TO: 2008 >
CC: 50

CENTRO 50 4T / SL 4T
50
2010 >

MODEL: CENTRO 50 4T / SL 4T
FROM > TO: 2010 >
CC: 50

CIAK 50 / CIAK Master 4T 50
50
2008 >

MODEL: CIAK 50 / CIAK Master 4T 50
FROM > TO: 2008 >
CC: 50

DVD 50 4T Malbonline
50
2010 >

MODEL: DVD 50 4T Malbonline
FROM > TO: 2010 >
CC: 50

MODEL
CC
KW
FROM > TO
BREVA V 850
850
2006 >

MODEL: BREVA V 850
FROM > TO: 2006 >
CC: 850

GRISO 850
850
2006 >

MODEL: GRISO 850
FROM > TO: 2006 >
CC: 850

Bellagio 940 (LY)
936
55
2007 >

MODEL: Bellagio 940 (LY)
FROM > TO: 2007 >
CC: 936
KW: 55

Bellagio 940 Deluxe (LY)
936
55
2007 >

MODEL: Bellagio 940 Deluxe (LY)
FROM > TO: 2007 >
CC: 936
KW: 55

Bellagio Aquila Nera
936
2010 >

MODEL: Bellagio Aquila Nera
FROM > TO: 2010 >
CC: 936

Breva 1100
1064
63
2006 >

MODEL: Breva 1100
FROM > TO: 2006 >
CC: 1064
KW: 63

Breva 1100 ABS
1064
63
2006 >

MODEL: Breva 1100 ABS
FROM > TO: 2006 >
CC: 1064
KW: 63

California Aquila Nera
1064
55
2010 >

MODEL: California Aquila Nera
FROM > TO: 2010 >
CC: 1064
KW: 55

California Classic (KD)
1064
55
2007 >

MODEL: California Classic (KD)
FROM > TO: 2007 >
CC: 1064
KW: 55

California Vintage (KD)
1064
55
2007 >

MODEL: California Vintage (KD)
FROM > TO: 2007 >
CC: 1064
KW: 55

California Vintage (KD)
1064
55
2011 >

MODEL: California Vintage (KD)
FROM > TO: 2011 >
CC: 1064
KW: 55

Griso 1100
1064
65
2005 >

MODEL: Griso 1100
FROM > TO: 2005 >
CC: 1064
KW: 65

Breva 1200 ABS
1151
68
2008 >

MODEL: Breva 1200 ABS
FROM > TO: 2008 >
CC: 1151
KW: 68

BREVA 1200
1151
66
2008 >

MODEL: BREVA 1200
FROM > TO: 2008 >
CC: 1151
KW: 66

NORGE 1200
1151
2006 > 2009

MODEL: NORGE 1200
FROM > TO: 2006 > 2009
CC: 1151

1200 GT
1200
2006 > 2009

MODEL: 1200 GT
FROM > TO: 2006 > 2009
CC: 1200

SPORT 1200 8V
1200
2007 > 2009

MODEL: SPORT 1200 8V
FROM > TO: 2007 > 2009
CC: 1200

California 1400 Custom
1380
71
2013 >

MODEL: California 1400 Custom
FROM > TO: 2013 >
CC: 1380
KW: 71

MODEL
CC
KW
FROM > TO
Brutale 675 (B3)
675
2013 >

MODEL: Brutale 675 (B3)
FROM > TO: 2013 >
CC: 675

F3 675
675
2012 >

MODEL: F3 675
FROM > TO: 2012 >
CC: 675

F3 675 Oro
675
2011 >

MODEL: F3 675 Oro
FROM > TO: 2011 >
CC: 675

Brutale 750 Oro (F41)
749
93
1999 >

MODEL: Brutale 750 Oro (F41)
FROM > TO: 1999 >
CC: 749
KW: 93

Brutale 750 Oro (F41)
749
93
2002 >

MODEL: Brutale 750 Oro (F41)
FROM > TO: 2002 >
CC: 749
KW: 93

Brutale 750 S
749
2002 >

MODEL: Brutale 750 S
FROM > TO: 2002 >
CC: 749

MV Agusta F4 S
750
1999 >

MODEL: MV Agusta F4 S
FROM > TO: 1999 >
CC: 750

Brutale 910 R (F41)
909
99
2006 >

MODEL: Brutale 910 R (F41)
FROM > TO: 2006 >
CC: 909
KW: 99

Brutale 920 (B53)
921
96
2011 >

MODEL: Brutale 920 (B53)
FROM > TO: 2011 >
CC: 921
KW: 96

Brutale 989 R
982
104
2008 >

MODEL: Brutale 989 R
FROM > TO: 2008 >
CC: 982
KW: 104

Brutale 990 R (B51)
998
2010 >

MODEL: Brutale 990 R (B51)
FROM > TO: 2010 >
CC: 998

F4 1000
998
137
2013 >

MODEL: F4 1000
FROM > TO: 2013 >
CC: 998
KW: 137

F4 1000 R (F61)
998
137
2008 >

MODEL: F4 1000 R (F61)
FROM > TO: 2008 >
CC: 998
KW: 137

F4 1000 RC (F6)
998
151
2015 >

MODEL: F4 1000 RC (F6)
FROM > TO: 2015 >
CC: 998
KW: 151

F4 1000 RR
998
148
2012 >

MODEL: F4 1000 RR
FROM > TO: 2012 >
CC: 998
KW: 148

Brutale 1078 RR
1078
113
2008 >

MODEL: Brutale 1078 RR
FROM > TO: 2008 >
CC: 1078
KW: 113

Brutale 1090 (B520, B521)
1078
106
2012 >

MODEL: Brutale 1090 (B520, B521)
FROM > TO: 2012 >
CC: 1078
KW: 106

Brutale 1090 R (B520, B521)
1078
106
2010 >

MODEL: Brutale 1090 R (B520, B521)
FROM > TO: 2010 >
CC: 1078
KW: 106

Brutale 1090 R (B520, B521)
1078
106
2012 >

MODEL: Brutale 1090 R (B520, B521)
FROM > TO: 2012 >
CC: 1078
KW: 106

Brutale 1090 RR (B520AA)
1078
116
2010 >

MODEL: Brutale 1090 RR (B520AA)
FROM > TO: 2010 >
CC: 1078
KW: 116

F4 1078 RR (F511)
1078
140
2008 >

MODEL: F4 1078 RR (F511)
FROM > TO: 2008 >
CC: 1078
KW: 140

MODEL
CC
KW
FROM > TO
Commando 961 Caf
961
2011 >

MODEL: Commando 961 Caf
FROM > TO: 2011 >
CC: 961

Commando 961 SE
961
2010 >

MODEL: Commando 961 SE
FROM > TO: 2010 >
CC: 961

Commando 961 Sport
961
2010 >

MODEL: Commando 961 Sport
FROM > TO: 2010 >
CC: 961

MODEL
CC
KW
FROM > TO
Geopolis 125 (AJP Caliper/ABS)
125
2006 >

MODEL: Geopolis 125 (AJP Caliper/ABS)
FROM > TO: 2006 >
CC: 125

Geopolis 125 Executiv ABS (N2AAAA)
125
11
2006 >

MODEL: Geopolis 125 Executiv ABS (N2AAAA)
FROM > TO: 2006 >
CC: 125
KW: 11

Geopolis 125 Premium (N2AAAA)
125
11
2006 >

MODEL: Geopolis 125 Premium (N2AAAA)
FROM > TO: 2006 >
CC: 125
KW: 11

Geopolis 125 Urban (AJP Caliper/ ABS)
125
2006 >

MODEL: Geopolis 125 Urban (AJP Caliper/ ABS)
FROM > TO: 2006 >
CC: 125

LUDIX 125
125
2004 >

MODEL: LUDIX 125
FROM > TO: 2004 >
CC: 125

SATELIS 125
125
2004 >

MODEL: SATELIS 125
FROM > TO: 2004 >
CC: 125

Satelis 125 Blacksat (AJP Calipers)
125
2008 >

MODEL: Satelis 125 Blacksat (AJP Calipers)
FROM > TO: 2008 >
CC: 125

Satelis 125 Blacksat (AJP Calipers)
125
2012 >

MODEL: Satelis 125 Blacksat (AJP Calipers)
FROM > TO: 2012 >
CC: 125

Satelis 125 K Compressor (4T)
125
2006 >

MODEL: Satelis 125 K Compressor (4T)
FROM > TO: 2006 >
CC: 125

Sum-up 125
125
5
2008 > 2009

MODEL: Sum-up 125
FROM > TO: 2008 > 2009
CC: 125
KW: 5

WTR 125
125
2007 > 2011

MODEL: WTR 125
FROM > TO: 2007 > 2011
CC: 125

Geopolis 250 Premium (N2ADAA)
244
17
2006 >

MODEL: Geopolis 250 Premium (N2ADAA)
FROM > TO: 2006 >
CC: 244
KW: 17

Geopolis 250 Executive (AJP caliper/ Non ABS)
250
2006 >

MODEL: Geopolis 250 Executive (AJP caliper/ Non ABS)
FROM > TO: 2006 >
CC: 250

Geopolis 250 Urban (AJP caliper/ ABS
250
2006 >

MODEL: Geopolis 250 Urban (AJP caliper/ ABS
FROM > TO: 2006 >
CC: 250

Satelis 250 Premium (Nissin Calipers)
250
2006 >

MODEL: Satelis 250 Premium (Nissin Calipers)
FROM > TO: 2006 >
CC: 250

Satelis 250 RS (Nissin Calipers)
250
2008 >

MODEL: Satelis 250 RS (Nissin Calipers)
FROM > TO: 2008 >
CC: 250

Satelis 250 Urban (AJP Caliper/ABS)
250
2006 >

MODEL: Satelis 250 Urban (AJP Caliper/ABS)
FROM > TO: 2006 >
CC: 250

MODEL
CC
KW
FROM > TO
Liberty 50 4T
49
3
2002 > 2005

MODEL: Liberty 50 4T
FROM > TO: 2002 > 2005
CC: 49
KW: 3

Liberty 50 4T
49
3
2006 >

MODEL: Liberty 50 4T
FROM > TO: 2006 >
CC: 49
KW: 3

Vespa ET4 50 (ZAPC26)
49
3
2006 >

MODEL: Vespa ET4 50 (ZAPC26)
FROM > TO: 2006 >
CC: 49
KW: 3

Vespa LX 50 4T (ZAPM383)
49
2
2006 >

MODEL: Vespa LX 50 4T (ZAPM383)
FROM > TO: 2006 >
CC: 49
KW: 2

Zip II 50 4T CatCon. DT (C25)
49
3
2006 >

MODEL: Zip II 50 4T CatCon. DT (C25)
FROM > TO: 2006 >
CC: 49
KW: 3

FLY 50 4T CHINA ENGINE
50
2006 >

MODEL: FLY 50 4T CHINA ENGINE
FROM > TO: 2006 >
CC: 50

Liberty 50 (4T / 10 Spoke Cast Wheels)
50
2006 >

MODEL: Liberty 50 (4T / 10 Spoke Cast Wheels)
FROM > TO: 2006 >
CC: 50

Fly 100 (4T)
100
2006 >

MODEL: Fly 100 (4T)
FROM > TO: 2006 >
CC: 100

Zip 100
100
2006 >

MODEL: Zip 100
FROM > TO: 2006 >
CC: 100

X9 125 (M23)
124
11
2001 >

MODEL: X9 125 (M23)
FROM > TO: 2001 >
CC: 124
KW: 11

Zip II 125 4T
124
9
>

MODEL: Zip II 125 4T
FROM > TO: >
CC: 124
KW: 9

Beverly 250 GT (M28)
244
16
2005 >

MODEL: Beverly 250 GT (M28)
FROM > TO: 2005 >
CC: 244
KW: 16

Carnaby 250 (M60)
244
16
2008 >

MODEL: Carnaby 250 (M60)
FROM > TO: 2008 >
CC: 244
KW: 16

MP3 250 RL (M47)
244
16
2006 >

MODEL: MP3 250 RL (M47)
FROM > TO: 2006 >
CC: 244
KW: 16

Vespa 250 GTV
244
16
2006 >

MODEL: Vespa 250 GTV
FROM > TO: 2006 >
CC: 244
KW: 16

Vespa 250 GTV
244
16
2011 >

MODEL: Vespa 250 GTV
FROM > TO: 2011 >
CC: 244
KW: 16

X7 250 (M62)
244
16
2007 >

MODEL: X7 250 (M62)
FROM > TO: 2007 >
CC: 244
KW: 16

X8 250 (M36)
244
16
2005 >

MODEL: X8 250 (M36)
FROM > TO: 2005 >
CC: 244
KW: 16

X8 250 (M36)
244
16
2006 >

MODEL: X8 250 (M36)
FROM > TO: 2006 >
CC: 244
KW: 16

XEvo 250 (M36)
244
16
2007 >

MODEL: XEvo 250 (M36)
FROM > TO: 2007 >
CC: 244
KW: 16

Vespa GTS
250
2005 >

MODEL: Vespa GTS
FROM > TO: 2005 >
CC: 250

Vespa GTS
250
2006 >

MODEL: Vespa GTS
FROM > TO: 2006 >
CC: 250

MODEL
CC
KW
FROM > TO
Fulltime
125
2001 >

MODEL: Fulltime
FROM > TO: 2001 >
CC: 125

Groomy
125
2001 >

MODEL: Groomy
FROM > TO: 2001 >
CC: 125

Kouranos
125
2001 >

MODEL: Kouranos
FROM > TO: 2001 >
CC: 125
