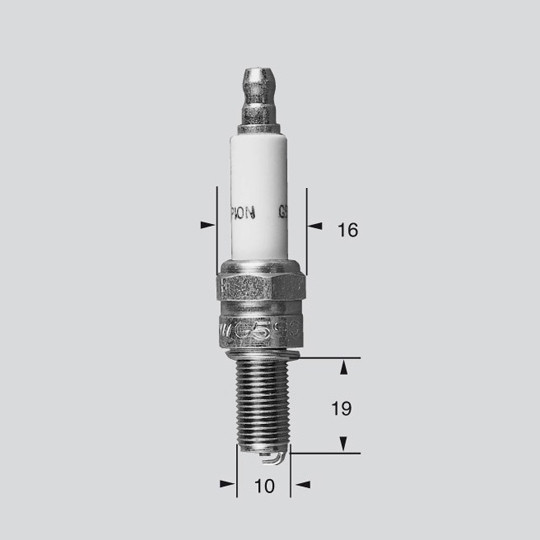

CCH8654E

TECH CODE: 8654

OUT OF RANGE

NOTE: January 2021: Out of range
HEAT RANGE (IMEP) - IMEP ESTABLISHED PER SAE J549 = 325
0 15 25 50 75 100 125 150 175 200 225 250 275 300 325 350 375 400

325
CONNECTION TERMINAL
TERMINAL: CC
GAP: 0.8 mm
RESISTOR TYPE: Q
DENSO
U27ESRN
DENSO
U27ETR
DENSO
U31ETR
DENSO
VNH27Z
NGK
CR10E
NGK
CR10EIX
NGK
CR10EK
NGK
R017-8
TORCH
B9RD

CCH8654E APPLICATION

MODEL
CC
KW
FROM > TO
TORNADO 900
900
2002 >

MODEL: TORNADO 900
FROM > TO: 2002 >
CC: 900

MODEL
CC
KW
FROM > TO
Alp 4.0
349
20
2003 >

MODEL: Alp 4.0
FROM > TO: 2003 >
CC: 349
KW: 20

ALP 4.0 350 4T
350
2003 >

MODEL: ALP 4.0 350 4T
FROM > TO: 2003 >
CC: 350

EURO 350
350
2001 >

MODEL: EURO 350
FROM > TO: 2001 >
CC: 350

EURO / JONATHAN 350
350
>

MODEL: EURO / JONATHAN 350
FROM > TO: >
CC: 350

EURO / JONATHAN 350
350
2001 >

MODEL: EURO / JONATHAN 350
FROM > TO: 2001 >
CC: 350

MODEL
CC
KW
FROM > TO
BELLARIA 600 SPORT
600
1990 > 1993

MODEL: BELLARIA 600 SPORT
FROM > TO: 1990 > 1993
CC: 600

YB 9 600 SRI
600
1995 > 2001

MODEL: YB 9 600 SRI
FROM > TO: 1995 > 2001
CC: 600

YB 9 600 SRI
600
1996 > 2001

MODEL: YB 9 600 SRI
FROM > TO: 1996 > 2001
CC: 600

SB8K
996
105
2005 >

MODEL: SB8K
FROM > TO: 2005 >
CC: 996
KW: 105

SB8R Special
996
98
1998 > 2003

MODEL: SB8R Special
FROM > TO: 1998 > 2003
CC: 996
KW: 98

SB8R Special
996
98
2000 > 2004

MODEL: SB8R Special
FROM > TO: 2000 > 2004
CC: 996
KW: 98

SB6 1100 R
1100
1996 > 2002

MODEL: SB6 1100 R
FROM > TO: 1996 > 2002
CC: 1100

MODEL
CC
KW
FROM > TO
Navigator 1000 (M5)
996
73
2000 >

MODEL: Navigator 1000 (M5)
FROM > TO: 2000 >
CC: 996
KW: 73

Navigator 1000 Touring (M5)
996
73
2000 >

MODEL: Navigator 1000 Touring (M5)
FROM > TO: 2000 >
CC: 996
KW: 73

Raptor 1000
996
83
2000 >

MODEL: Raptor 1000
FROM > TO: 2000 >
CC: 996
KW: 83

V-Raptor 1000
996
77
2000 >

MODEL: V-Raptor 1000
FROM > TO: 2000 >
CC: 996
KW: 77

X-TRA Raptor1000
996
83
2003 >

MODEL: X-TRA Raptor1000
FROM > TO: 2003 >
CC: 996
KW: 83

MODEL
CC
KW
FROM > TO
CANNIBAL 400 BLACK / SILVER
400
2002 >

MODEL: CANNIBAL 400 BLACK / SILVER
FROM > TO: 2002 >
CC: 400

FX 400
400
2000 >

MODEL: FX 400
FROM > TO: 2000 >
CC: 400

MX 400
400
2000 >

MODEL: MX 400
FROM > TO: 2000 >
CC: 400

440 (All Enduro / MX Models)
440
2000 >

MODEL: 440 (All Enduro / MX Models)
FROM > TO: 2000 >
CC: 440

BLAZE 440
440
2002 >

MODEL: BLAZE 440
FROM > TO: 2002 >
CC: 440

GLAMIS 440
440
2003 >

MODEL: GLAMIS 440
FROM > TO: 2003 >
CC: 440

MOTO 440
440
2002 >

MODEL: MOTO 440
FROM > TO: 2002 >
CC: 440

SPEED 440
440
2002 >

MODEL: SPEED 440
FROM > TO: 2002 >
CC: 440

MODEL
CC
KW
FROM > TO
644 DS
644
2002 >

MODEL: 644 DS
FROM > TO: 2002 >
CC: 644

644 R30
644
2002 >

MODEL: 644 R30
FROM > TO: 2002 >
CC: 644

MODEL
CC
KW
FROM > TO
Boulevard 125 4T (M57)
124
7
>

MODEL: Boulevard 125 4T (M57)
FROM > TO: >
CC: 124
KW: 7

Boulevard 150
150
8
>

MODEL: Boulevard 150
FROM > TO: >
CC: 150
KW: 8

MODEL
CC
KW
FROM > TO
FJS 600 Silver Wing (PF01)
582
37
2001 >

MODEL: FJS 600 Silver Wing (PF01)
FROM > TO: 2001 >
CC: 582
KW: 37

FJS 600 Silver Wing (PF01)
582
37
2003 >

MODEL: FJS 600 Silver Wing (PF01)
FROM > TO: 2003 >
CC: 582
KW: 37

FJS 600 Silver Wing ABS (PF01)
582
37
2001 >

MODEL: FJS 600 Silver Wing ABS (PF01)
FROM > TO: 2001 >
CC: 582
KW: 37

FJS 600 Silver Wing ABS (PF01)
582
37
2003 >

MODEL: FJS 600 Silver Wing ABS (PF01)
FROM > TO: 2003 >
CC: 582
KW: 37

CBR 600 F Sport (PC35)
599
2001 > 2004

MODEL: CBR 600 F Sport (PC35)
FROM > TO: 2001 > 2004
CC: 599

CBR 600 RR (PC37)
599
86
2003 > 2006

MODEL: CBR 600 RR (PC37)
FROM > TO: 2003 > 2006
CC: 599
KW: 86

CBR 600 RR (PC40)
599
2007 > 2012

MODEL: CBR 600 RR (PC40)
FROM > TO: 2007 > 2012
CC: 599

CBR 600 RR (PC41)
599
88
2013 > 2016

MODEL: CBR 600 RR (PC41)
FROM > TO: 2013 > 2016
CC: 599
KW: 88

CBR 600 F
600
2001 > 2004

MODEL: CBR 600 F
FROM > TO: 2001 > 2004
CC: 600

CBR 600 F
600
2001 > 2007

MODEL: CBR 600 F
FROM > TO: 2001 > 2007
CC: 600

CBR 600 F
600
2005 > 2007

MODEL: CBR 600 F
FROM > TO: 2005 > 2007
CC: 600

CBR 600 F
600
2011 >

MODEL: CBR 600 F
FROM > TO: 2011 >
CC: 600

Silver Wing (FSC600)
600
2001 >

MODEL: Silver Wing (FSC600)
FROM > TO: 2001 >
CC: 600

Silver Wing (FSC600D)
600
2003 >

MODEL: Silver Wing (FSC600D)
FROM > TO: 2003 >
CC: 600

Silver Wing 600 (FJS600)
600
2001 >

MODEL: Silver Wing 600 (FJS600)
FROM > TO: 2001 >
CC: 600

Silver Wing 600 (FJS600D)
600
2003 >

MODEL: Silver Wing 600 (FJS600D)
FROM > TO: 2003 >
CC: 600

Silver Wing GT600 ABS (FSC600A)
600
2011 >

MODEL: Silver Wing GT600 ABS (FSC600A)
FROM > TO: 2011 >
CC: 600

VFR 800 (RC46A)
782
80
2001 >

MODEL: VFR 800 (RC46A)
FROM > TO: 2001 >
CC: 782
KW: 80

VFR 800 (RC46A)
782
80
2002 > 2010

MODEL: VFR 800 (RC46A)
FROM > TO: 2002 > 2010
CC: 782
KW: 80

VFR 800 (RC46)
782
78
2002 > 2010

MODEL: VFR 800 (RC46)
FROM > TO: 2002 > 2010
CC: 782
KW: 78

VFR 800 ABS (RC46C)
782
80
2001 >

MODEL: VFR 800 ABS (RC46C)
FROM > TO: 2001 >
CC: 782
KW: 80

VFR 800 ABS (RC46C)
782
80
2002 > 2010

MODEL: VFR 800 ABS (RC46C)
FROM > TO: 2002 > 2010
CC: 782
KW: 80

VFR 800
800
2002 > 2010

MODEL: VFR 800
FROM > TO: 2002 > 2010
CC: 800

VFR 800
800
2014 >

MODEL: VFR 800
FROM > TO: 2014 >
CC: 800

VFR V-TEC ABS
800
2001 >

MODEL: VFR V-TEC ABS
FROM > TO: 2001 >
CC: 800

VFR 800 X Crossrunner
800
2011 >

MODEL: VFR 800 X Crossrunner
FROM > TO: 2011 >
CC: 800

VFR 800 XC Crossrunner
800
2012 >

MODEL: VFR 800 XC Crossrunner
FROM > TO: 2012 >
CC: 800

CBR 900 RR Fireblade (SC28)
893
72
1991 > 1995

MODEL: CBR 900 RR Fireblade (SC28)
FROM > TO: 1991 > 1995
CC: 893
KW: 72

CBR 900 F
900
2004 >

MODEL: CBR 900 F
FROM > TO: 2004 >
CC: 900

CBR 900 RR FIREBLADE (SC33) SC33
900
1996 > 1999

MODEL: CBR 900 RR FIREBLADE (SC33) SC33
FROM > TO: 1996 > 1999
CC: 900

CBR 900 RR FIREBLADE (SC44&50) SC44 e SC50
900
2000 > 2001

MODEL: CBR 900 RR FIREBLADE (SC44&50) SC44 e SC50
FROM > TO: 2000 > 2001
CC: 900

CBR 900 RR FIREBLADE (SC44&50) SC44 e SC50
900
2002 > 2004

MODEL: CBR 900 RR FIREBLADE (SC44&50) SC44 e SC50
FROM > TO: 2002 > 2004
CC: 900

CB 1000 R (SC60)
998
2009 >

MODEL: CB 1000 R (SC60)
FROM > TO: 2009 >
CC: 998

CBR 1000 RR Fireblade (SC57)
1000
126
2004 > 2007

MODEL: CBR 1000 RR Fireblade (SC57)
FROM > TO: 2004 > 2007
CC: 1000
KW: 126

CBR 1000 RR Fireblade (SC57)
1000
126
2007 >

MODEL: CBR 1000 RR Fireblade (SC57)
FROM > TO: 2007 >
CC: 1000
KW: 126

CBR 1000 RR Fireblade (SC59)
1000
2008 >

MODEL: CBR 1000 RR Fireblade (SC59)
FROM > TO: 2008 >
CC: 1000

CBR 1100 XX
1100
1997 > 2000

MODEL: CBR 1100 XX
FROM > TO: 1997 > 2000
CC: 1100

CBR 1100 XX
1100
2001 > 2008

MODEL: CBR 1100 XX
FROM > TO: 2001 > 2008
CC: 1100

VFR 1200 F (SC63)
1237
127
2010 >

MODEL: VFR 1200 F (SC63)
FROM > TO: 2010 >
CC: 1237
KW: 127

MODEL
CC
KW
FROM > TO
Ninja 600 ZX-6R
600
1995 >

MODEL: Ninja 600 ZX-6R
FROM > TO: 1995 >
CC: 600

Ninja 600 ZX-6RR (ZX600)
600
2003 >

MODEL: Ninja 600 ZX-6RR (ZX600)
FROM > TO: 2003 >
CC: 600

Ninja 600 ZX-6RR (ZX600)
600
2004 >

MODEL: Ninja 600 ZX-6RR (ZX600)
FROM > TO: 2004 >
CC: 600

ZZR 600
600
1990 >

MODEL: ZZR 600
FROM > TO: 1990 >
CC: 600

ZZR 600 (ZX600D/F382)
600
1993 >

MODEL: ZZR 600 (ZX600D/F382)
FROM > TO: 1993 >
CC: 600

Ninja 636 ZX-6R (ZX636B)
636
2003 >

MODEL: Ninja 636 ZX-6R (ZX636B)
FROM > TO: 2003 >
CC: 636

Z 750 No Abs No ABS
748
2004 >

MODEL: Z 750 No Abs No ABS
FROM > TO: 2004 >
CC: 748

Z 750 S (ZR750K)
748
2005 >

MODEL: Z 750 S (ZR750K)
FROM > TO: 2005 >
CC: 748

ZX-7 750 RR NINJA
750
1996 >

MODEL: ZX-7 750 RR NINJA
FROM > TO: 1996 >
CC: 750

Ninja ZX-9R (ZX900E)
899
2000 >

MODEL: Ninja ZX-9R (ZX900E)
FROM > TO: 2000 >
CC: 899

Ninja ZX-9R (ZX900F)
899
2000 >

MODEL: Ninja ZX-9R (ZX900F)
FROM > TO: 2000 >
CC: 899

ZRX 1200 R (ZRT20A/A-B)
1164
2000 >

MODEL: ZRX 1200 R (ZRT20A/A-B)
FROM > TO: 2000 >
CC: 1164

ZRX 1200 S (ZRT20A/A-B)
1164
2000 >

MODEL: ZRX 1200 S (ZRT20A/A-B)
FROM > TO: 2000 >
CC: 1164

ZZ-R 1200 (ZXT20C)
1164
2001 >

MODEL: ZZ-R 1200 (ZXT20C)
FROM > TO: 2001 >
CC: 1164

Ninja ZX-12R (ZXT20A/A)
1199
131
2000 >

MODEL: Ninja ZX-12R (ZXT20A/A)
FROM > TO: 2000 >
CC: 1199
KW: 131

Ninja ZX-12R (ZXT20A/B)
1199
140
2000 >

MODEL: Ninja ZX-12R (ZXT20A/B)
FROM > TO: 2000 >
CC: 1199
KW: 140

MODEL
CC
KW
FROM > TO
Corsaro 1200
1187
103
2005 >

MODEL: Corsaro 1200
FROM > TO: 2005 >
CC: 1187
KW: 103

9 1/2
1200
2005 >

MODEL: 9 1/2
FROM > TO: 2005 >
CC: 1200

MODEL
CC
KW
FROM > TO
Brutale 750 Oro (F41)
749
93
1999 >

MODEL: Brutale 750 Oro (F41)
FROM > TO: 1999 >
CC: 749
KW: 93

Brutale 750 Oro (F41)
749
93
2002 >

MODEL: Brutale 750 Oro (F41)
FROM > TO: 2002 >
CC: 749
KW: 93

Brutale 750 S
749
2002 >

MODEL: Brutale 750 S
FROM > TO: 2002 >
CC: 749

MV Agusta F4 S
750
1999 >

MODEL: MV Agusta F4 S
FROM > TO: 1999 >
CC: 750

MV Agusta F4 S
750
2003 >

MODEL: MV Agusta F4 S
FROM > TO: 2003 >
CC: 750

Brutale 910 R (F41)
909
99
2005 >

MODEL: Brutale 910 R (F41)
FROM > TO: 2005 >
CC: 909
KW: 99

Brutale 910 S (F41)
909
99
2005 >

MODEL: Brutale 910 S (F41)
FROM > TO: 2005 >
CC: 909
KW: 99

MODEL
CC
KW
FROM > TO
Super Hexagon 125 GTX (M20)
124
11
2001 >

MODEL: Super Hexagon 125 GTX (M20)
FROM > TO: 2001 >
CC: 124
KW: 11

HEXAGON 125 LX
125
2001 >

MODEL: HEXAGON 125 LX
FROM > TO: 2001 >
CC: 125

Super Hexagon 180 GTX (M06)
176
15
2001 >

MODEL: Super Hexagon 180 GTX (M06)
FROM > TO: 2001 >
CC: 176
KW: 15

SUPER HEXAGON 250 GTX
250
>

MODEL: SUPER HEXAGON 250 GTX
FROM > TO: >
CC: 250

MODEL
CC
KW
FROM > TO
Roadster 650
644
37
1999 >

MODEL: Roadster 650
FROM > TO: 1999 >
CC: 644
KW: 37

MODEL
CC
KW
FROM > TO
SV 650 (AV)
25
1998 > 2002

MODEL: SV 650 (AV)
FROM > TO: 1998 > 2002
CC: 25

Burgman 250 (AN)
249
17
1998 >

MODEL: Burgman 250 (AN)
FROM > TO: 1998 >
CC: 249
KW: 17

AN 250 BURGMAN W/X/Y
250
1998 >

MODEL: AN 250 BURGMAN W/X/Y
FROM > TO: 1998 >
CC: 250

GSX-R 250 R - R/SP
250
1989 >

MODEL: GSX-R 250 R - R/SP
FROM > TO: 1989 >
CC: 250

GOOSE 350
350
1993 >

MODEL: GOOSE 350
FROM > TO: 1993 >
CC: 350

GSF 400 Bandit (GK75B)
398
37
1992 >

MODEL: GSF 400 Bandit (GK75B)
FROM > TO: 1992 >
CC: 398
KW: 37

GSX-R 400
398
1989 > 1990

MODEL: GSX-R 400
FROM > TO: 1989 > 1990
CC: 398

GSX-R 400
398
1990 >

MODEL: GSX-R 400
FROM > TO: 1990 >
CC: 398

GSF 600 Bandit (GN77B)
599
1995 >

MODEL: GSF 600 Bandit (GN77B)
FROM > TO: 1995 >
CC: 599

RF 600 R (GN76B)
599
1993 >

MODEL: RF 600 R (GN76B)
FROM > TO: 1993 >
CC: 599

GSF 600 BANDIT - KATANA
600
2000 >

MODEL: GSF 600 BANDIT - KATANA
FROM > TO: 2000 >
CC: 600

GSX 600 F
600
1996 >

MODEL: GSX 600 F
FROM > TO: 1996 >
CC: 600

GSX-R 600 V
600
78
2001 >

MODEL: GSX-R 600 V
FROM > TO: 2001 >
CC: 600
KW: 78

AN 650 Burgman (WVBU)
638
41
2002 > 2012

MODEL: AN 650 Burgman (WVBU)
FROM > TO: 2002 > 2012
CC: 638
KW: 41

XF 650 Freewind (AC)
644
1997 >

MODEL: XF 650 Freewind (AC)
FROM > TO: 1997 >
CC: 644

DR 650 SE (SP46B)
644
1996 > 2000

MODEL: DR 650 SE (SP46B)
FROM > TO: 1996 > 2000
CC: 644

GSX 750 FW/FX/FY/FK1/FK2
750
1998 >

MODEL: GSX 750 FW/FX/FY/FK1/FK2
FROM > TO: 1998 >
CC: 750

GSX-R 750
750
1995 >

MODEL: GSX-R 750
FROM > TO: 1995 >
CC: 750

GSX-R 750
750
2000 > 2003

MODEL: GSX-R 750
FROM > TO: 2000 > 2003
CC: 750

GSX-R 750
750
2004 > 2005

MODEL: GSX-R 750
FROM > TO: 2004 > 2005
CC: 750

RF 900 RR
900
1994 >

MODEL: RF 900 RR
FROM > TO: 1994 >
CC: 900

RF 900 RT - RV
900
1994 >

MODEL: RF 900 RT - RV
FROM > TO: 1994 >
CC: 900

TL 1000 R (AM)
996
1998 >

MODEL: TL 1000 R (AM)
FROM > TO: 1998 >
CC: 996

GSX-R 1100 W
1100
1993 >

MODEL: GSX-R 1100 W
FROM > TO: 1993 >
CC: 1100

GSX 1300 R Hayabusa (WVA1)
1299
129
1999 >

MODEL: GSX 1300 R Hayabusa (WVA1)
FROM > TO: 1999 >
CC: 1299
KW: 129

MODEL
CC
KW
FROM > TO
Daytona 600
599
82
2003 >

MODEL: Daytona 600
FROM > TO: 2003 >
CC: 599
KW: 82

Speed Four (806LB)
599
72
2002 >

MODEL: Speed Four (806LB)
FROM > TO: 2002 >
CC: 599
KW: 72

TT 600 (806AD)
599
81
2000 >

MODEL: TT 600 (806AD)
FROM > TO: 2000 >
CC: 599
KW: 81

Daytona 650 (865LX)
646
84
2005 >

MODEL: Daytona 650 (865LX)
FROM > TO: 2005 >
CC: 646
KW: 84

Daytona 675
675
72
2006 > 2012

MODEL: Daytona 675
FROM > TO: 2006 > 2012
CC: 675
KW: 72

Daytona 675
675
94
2006 > 2012

MODEL: Daytona 675
FROM > TO: 2006 > 2012
CC: 675
KW: 94

Daytona 675 D67LC
675
92
2006 > 2012

MODEL: Daytona 675 D67LC
FROM > TO: 2006 > 2012
CC: 675
KW: 92

Speed Triple 955i (595N)
955
88
2002 >

MODEL: Speed Triple 955i (595N)
FROM > TO: 2002 >
CC: 955
KW: 88

Sprint RS
955
88
2002 >

MODEL: Sprint RS
FROM > TO: 2002 >
CC: 955
KW: 88

SPRINT ST 955
955
2002 >

MODEL: SPRINT ST 955
FROM > TO: 2002 >
CC: 955

Speed Triple 1050 (515NJ)
1050
2005 >

MODEL: Speed Triple 1050 (515NJ)
FROM > TO: 2005 >
CC: 1050

Sprint ST (215NA)
1050
92
2005 >

MODEL: Sprint ST (215NA)
FROM > TO: 2005 >
CC: 1050
KW: 92

MODEL
CC
KW
FROM > TO
TT 250 R
250
2000 >

MODEL: TT 250 R
FROM > TO: 2000 >
CC: 250

YZ 250 (2T)
250
2001 >

MODEL: YZ 250 (2T)
FROM > TO: 2001 >
CC: 250

FZ6 Fazer (RJ07)
600
2004 >

MODEL: FZ6 Fazer (RJ07)
FROM > TO: 2004 >
CC: 600

FZ6 S2 Fazer (RJ14)
600
72
2004 >

MODEL: FZ6 S2 Fazer (RJ14)
FROM > TO: 2004 >
CC: 600
KW: 72

YZF-R6
600
1999 >

MODEL: YZF-R6
FROM > TO: 1999 >
CC: 600

YZF-R6
600
1999 >

MODEL: YZF-R6
FROM > TO: 1999 >
CC: 600

YZF-R6
600
2006 > 2007

MODEL: YZF-R6
FROM > TO: 2006 > 2007
CC: 600

YZF-R6
600
2008 > 2008

MODEL: YZF-R6
FROM > TO: 2008 > 2008
CC: 600

YZF-R6
600
2008 > 2011

MODEL: YZF-R6
FROM > TO: 2008 > 2011
CC: 600

YZF-R6
600
2013 >

MODEL: YZF-R6
FROM > TO: 2013 >
CC: 600

FZS 1000 Fazer (RN06)
998
105
2000 >

MODEL: FZS 1000 Fazer (RN06)
FROM > TO: 2000 >
CC: 998
KW: 105

YZF-R1 (RN01)
998
72
1998 > 2001

MODEL: YZF-R1 (RN01)
FROM > TO: 1998 > 2001
CC: 998
KW: 72

YZF-R1 (RN12)
998
2004 > 2006

MODEL: YZF-R1 (RN12)
FROM > TO: 2004 > 2006
CC: 998
